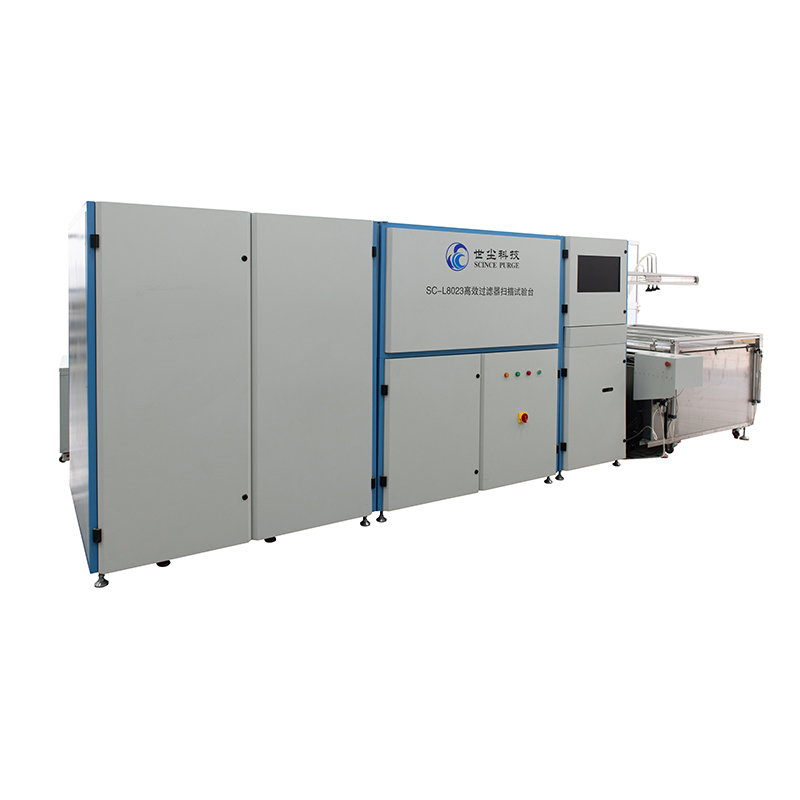

Designed for filter element manufacturer, used for quality control of EPA and HEPA filter.
Test indexes: average efficiency, local efficiency, resistance, number of leaks, and number of scanned particles.
Aerosol size:≥0.3um.
Aerosol: DEHS.
Install the filter, set the parameters, and automatic scanning.
1 or 4 probe, 2 configurations, gradual upgrade.
30s for one filter element (600x600mm).
Test results can be printed as label or A4 report.
Applications
Test for H10—H14 plate type HEPA filter, including those with and without diaphragms.
Quality control for HEPA filter manufacturer, evaluation of new product structure and processing technology, selection of filter materials, etc.
Technical Parameters
|
Item |
Parameter |
|
Output air volume |
500-3500m3 / h, ± 5% (frequency conversion control, adjustable) |
|
Scanning speed |
≤ 5cm / s (can be adjusted by yourself) |
|
Aerosol |
DEHS, 0.3μm~0.5μm, concentration is ≥70% |
|
Sampling flow rate |
≥ 28.3L / min, ± 5% |
|
Resistance range |
0~500Pa |
|
The uniformity of air flow at the measured section |
≤10% |
|
Test coverage |
100% |
|
Dimension |
5700mm×1800mm×1800mm |
